Netcash Debit Order is a Splynx add-on (previously SagePay direct debit), used to generate debit orders and is processed via https://netcash.co.za/.
If you have difficulties with a Netcash debit charge in Splynx, please follow the how-to instructions in chapter 'How do I check if my customers have been successfully charged' below.
To install Netcash Debit Orders, navigate to
Config → Integrations → Add-ons:
Locate or search for the
splynx-netcash-debit-order add-on and click the install button in the Actions column:
Alternatively, the add-on can be installed using the following commands via a terminal on your server:
apt update apt install splynx-netcash-debit-order
When the installation has completed, you need to register with Netcash and configure your account:
Account service key:
Debit orders service key:
PCI vault key:
And your Merchant account number:

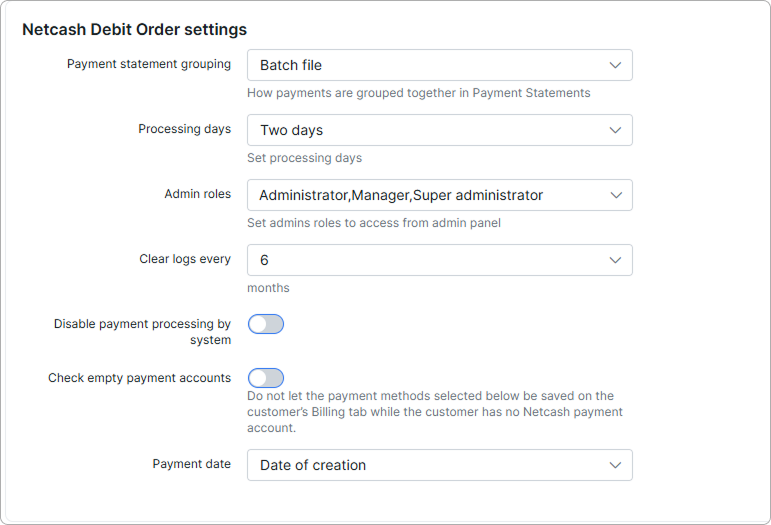

The values above have to be added to the Partners settings section of add-on configuration, located in
Config → Integrations → Modules list.
Locate or search for the
splynx_netcash_do_addon item and click on the
(Edit) icon in the Actions column:
API domain - api domain should be the same as the Splynx URL. The forward slash
/ is required at the end;
API key, API secret - auto generated default values. Don't change it unless it is absolutely necessary.
In the Admin roles field, you can choose which build-in roles will have access via the admin panel to
Finance → Netcash Debit Order check payments. The following roles can be specified in the field admins roles:
The roles of
managerare selected by default in the drop down list after add-on installation. It means that the admin account with any of these roles always has access to
Finance → Netcash Debit Order check paymentsmenu (account's permissions to Finance module and Netcash Debit Order add-on are required as well).
In Splynx v3.1, the names of admins roles cannot be selected from a drop-down list, you should write them into the field manually if it's empty, each role should be separated by comma without spaces.
But if the admin account has only
technicianrole and this role was not set in the add-on config, the access to
Netcash Debit Order check paymentsmenu for such admin will be forbidden.
Netcash → Splynx(e.g. you configured the payments sync from SageOne to Splynx), you can use the Disable payment processing by system option. If the toggle is
enabled- cron will not sync payments to Splynx from Netcash side; if it's
disabled- payments will be synced into Splynx;
Administrators can receive notifications when a customer has created a Netcash payment account. To enable this feature, use the Notifications settings provided.
The Batch Auto Authorise function allows the Splynx system to authorise batches automatically (once per hour) without manual/human intervention during the invoice payment. To turn on this functionality, please enable the
Auto-authorise batches toggle in the add-on configuration page and press
The Batch Auto Authorise function is available on request and access is only granted by Netcash management approval. Use this link to send a request.
In case you do not use the Batch Auto Authorise function, we have the following concept: the customers pay invoices, these payments are sent to Netcash side as batch files. After that, the administrator, at some intervals, logs into the Netcash account and manually authorises all customers' payments. The Netcash, for its part, does a final check of such payments and provides the results; Splynx checks the Netcash output results by cron and we get the final status of the payments.
If the access is granted and Batch Auto Authorise function in enabled in Splynx, the concept will be as follows: the administrator no longer needs to log in and authorise the batches in the Netcash account manually. Splynx will send the request to Netcash once per hour in order to receive a list of all currently unauthorised payments and re-send requests to Netcash again to authorise them.
The log records about the batch file(-s) authorisation can be found in
Administration → Logs → Netcash Debit Order General Logs:
*sign have the different values from original ones (original values are related to Default partner);
To add the Netcash payment account, navigate to the customer's Billing tab, and click on the card icon in the Payment accounts window.
It's recommended to use the card icon in order to add an account with validation.
In this section, the admin can add the Netcash payment account credentials to the customer profile with the provided bank account or credit card details.
Also, the payment account can be added by clicking on the button. However, this method of adding the account will bypass the Netcash validation procedure.
Moreover, the Netcash payment account can be added from customer's Portal as well:
All customer personal information related to their bank account is stored encrypted in the database.

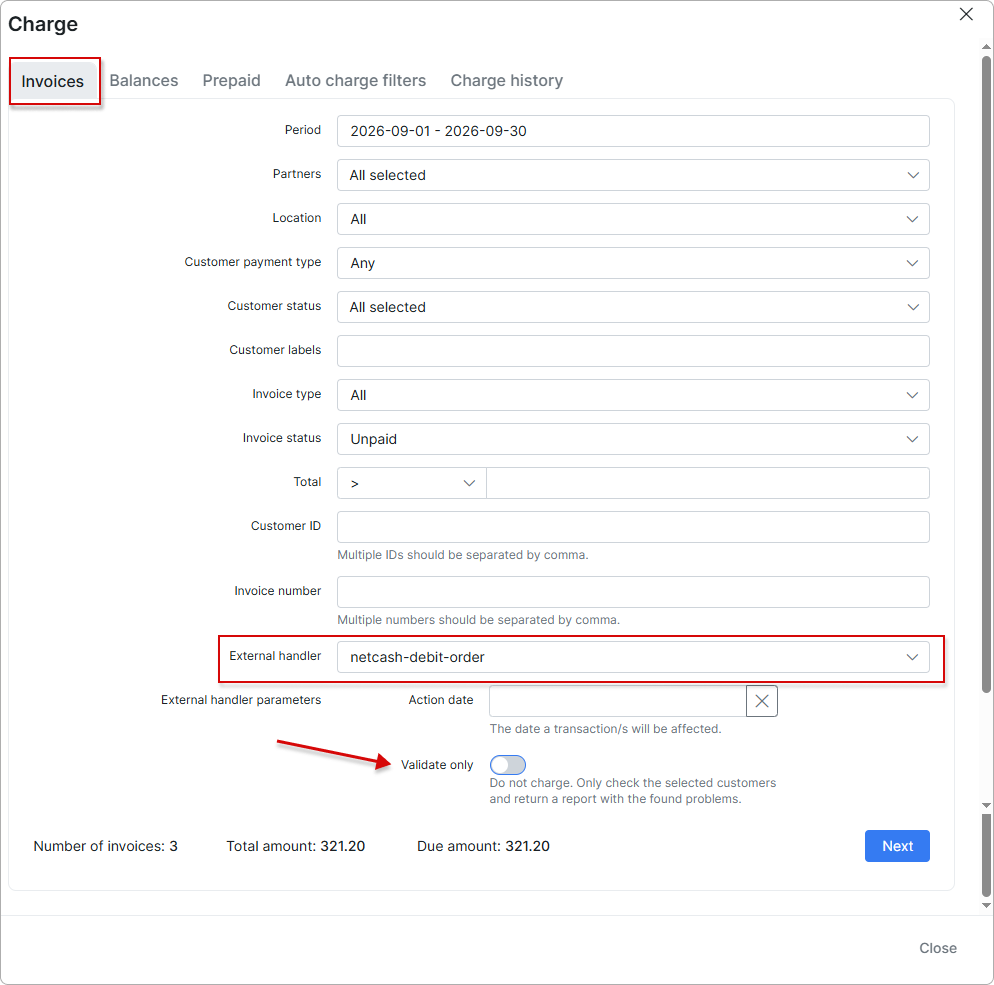

When customers have the Netcash payment accounts configured, the admin can charge their invoices all at once.
To perform the charge of
Unpaid invoices, navigate to
Finance → Invoices on the sidebar:
|General information - how the Charge of invoices works|
|1||The admin charges the invoices in Splynx. Once the charge is successful, the payment statements and batch files will be created and sent to the Netcash gateway and the charged invoices will change their status to
|2||On the Netcash side it can take up to two days after the action date to receive the payments as well as non-payments (bounced payments)|
|3||Splynx will check the Netcash gateway twice a day for any payments and will allocate them to the correct invoices, in this case the invoices will become
NOTE: The ability to charge the customer balances was removed from the add-on features in Splynx v3.1, but it was reintroduced in Splynx v4.0.
Debit Order Charge Scenarios
If you charge the invoices using the Balances tab, the customer will be charged not according to the invoice amount, but with the amount outstanding on the customer’s account.
A customer has the invoice with the amount of 10, in the current month, but the balance of the account is -100 (it means that the customer didn't pay for 10 months) in this case, the customer will be charged with the amount of 100 and not 10.
That's why, please be very attentive when using the
balances charge handler.
Authorizing Debit Order Batches
Once the invoices are charged, Splynx will create and send the debit batch file with the payment details to https://netcash.co.za/. When the file is received on the Netcash side, log in to your Netcash account and navigate to
Services → Debit orders → Manage debit orders → Debit batches, in the debit batch list select the correct item, check the detail of the batch for accuracy. Then, press the Authorise button. Select Email or SMS notifications if you would like to notify your customers of the debits to be processed to the accounts.
The next step is to release funds to bank account:
After that, Accept the Terms and conditions - the screen will then refresh and display and Authorise button. Click on the Authorise button again. Your batch is now authorised, click Ok. Netcash has processed the file on the selected action date.
IMPORTANT: Your batch will now be displayed with an Unauthorise button in the Authorisation column - batches can be unauthorised for further editing or deletion up until the cut-off time for that service type (
Two days or
If the toggle of Disable payment processing by system option is disabled, Splynx will send two requests per day (at 00:15 and 12:15) to Netcash via a cron job to retrieve the payments from Netcash. This will auto allocate the payments and update the invoice statuses to
You can also manually run the check payments for any historic date by using the Netcash Debit Order check payments module in the Finance section on the sidebar:
The charge history can be viewed under the Charge history tab:
File records with charged invoices can be downloaded or deleted in this section.
The process of invoice charging can be automated. To achieve this, the admin should add the Auto charge filter:
Auto charge filter doesn't require any confirmation from the administrator, so use it with caution.
To make Auto Charge work properly you should navigate to
Config → Finance → Automation and ensure that the value in the
Date to use on finance elements field is set to
Real date of issuing.
The debit order batch should be deleted in Netcash as well as the relevant payment statement in Splynx (be very vigilant when deleting payment statements as deleting the wrong statement can cause payments not to be auto allocated back to the correct invoices), once completed, invoices can be re-charged.
Finance → Invoices, press the Charge button and click on the Charge history tab. Use the Search field or click on the column name (e.g
Id) to sort items and find the latest
Balancesitem you need.
Errorstatus, please download the charge history log by clicking the (Download) icon.
Open and check the log file, you can easily determine the cause of the error.
If a customer doesn't have the saved payment credentials for Netcash service in Splynx, the customer id will be recorded in the charge log to easily identify their profile.
ERRORS: Error: Customer payment account is empty! - Customer id : 7322 OUTPUT: Start Netcash Debit Order charging.. type: "invoice" amount items: 1 Fri, 14 Jan 2022 15:16:52 +0200 Work with invoice with id 2155 Loaded invoice number "202201000151" Customer id: 7322 Invoice amount: 100 No fee Total amount: 100 Customer payment account is empty! - Customer id : 7322
Balancesitem has the charge status as
Readyon the tab Charge history in Splynx, but you still cannot validate the payments in Netcash account, please double check your email box registered with the Netcash service.
If there are errors in the Batch file, Netcash sends the email with the errors details to this email box.
After installing the Netcash Debit order add-on, customers can pay their (proforma) invoices directly from their Portal page using widgets (entry points).
Make sure that Entry points option is enabled in Main information section of the add-on configuration. Note that changes are not saved until you click on
The configuration of add-on Entry points can be found in
Config → Integrations → Modules list, near the
splynx_netcash_do_addon module item in Actions column, click on the (Edit entry points) icon.
The widgets can be enabled/disabled and updated by partner or location values to make this widget available only for specific partners or locations.
More information about Modules list can be found here.
Customers can pay for their invoices under
Finance → Documents or from the Dashboard in the
Unpaid invoices section:
Customers can easily top up their balance from the Dashboard using the
Pay by button:
The customer can also view, update, or remove Netcash account details here:
NOTE: If the customer pays their invoices using the Netcash Debit Order add-on on the Customer portal, the new payment statements will be created on the admin portal in
Finance → Payment statements → History. We use payment statements in Splynx to track and allocate payments to the correct invoices once retrieved.
Using the direct payments links is the simplest way to accept payments made with a credit card or bank account. This feature is available in the Netcash Debit Order add-on to pay Invoices and Proforma Invoices. This provides convenience and simplicity for your customer, so the amount of on-time payments will increase.
For example, you can add a payment link to the email with the (proforma) invoice, as a result, the customer can make payment quickly by clicking onto this link instead of logging in to their Customer portal page.
In case the customer has saved the payment credentials on the Customer portal, later they do not need to add any further details when using the direct payment link.
Otherwise, (the customer payment accounts are not saved), the option
Save and allow future charge can be used on the direct payment form page to save the customer credit card or bank account credentials on their Customer portal.
To create a direct payment link, please use the patterns below:
To pay the Invoice:
To pay the Proforma Invoice:
The Netcash logs can be found in
Administration → Logs:
In General Logs, the different records can be viewed (when the statements were created or when payments were processed, etc):
Under Charge Logs only logs regarding charges can be found:
We have created a tool that we use to import account details from the Netcash Master file or any other CSV with the relevant details. We simply require an identifier to match the payment record in the document to the customer on Splynx e.g. an account/reference number or customer name.
This tool can be found under
Config → Tools:
In this section, a CSV file can be uploaded, a delimiter can be selected and finally, the file can be uploaded:
When the data has been uploaded, select the corresponding headers:
NOTE: The file must contain the Customer id, Bank account type id, Branch code, Bank account number, Account holder name and Payment method id fields.
In case Payment method id value is set in CSV file and payment method exists in Splynx, the customer's
Payment method (Customers → List → Customer → Billing → Billing Config→ Billing Settings section → Payment method field) will be changed after import.
If Payment method id value is empty in CSV file - the customer's payment method will not be changed.
And, when Payment method id value is incorrect - it will be ignored during import.
